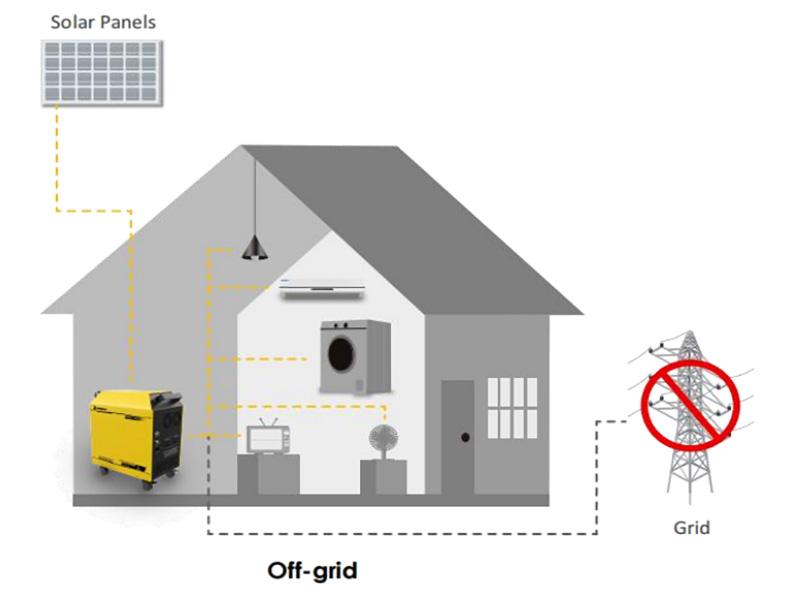

Integrate photovoltaic power generation and intelligent energy storage technology, without grid connection, realize 24-hour uninterrupted power demand, and adapt to scenarios such as islands, mountainous areas, and pastures.
Payment:
T/T, L/CProduct Origin:
ChinaColor:
SilverLead Time:
7daysMSS balcony photovoltaic systems are designed for small spaces such as balconies, terraces, walls or floors, and are available in 1kW, 2kW, 3kW and other power levels, and are divided into hanging, floor-mounted andwall-mounted types, which are suitable for a variety of applications.
Product Features

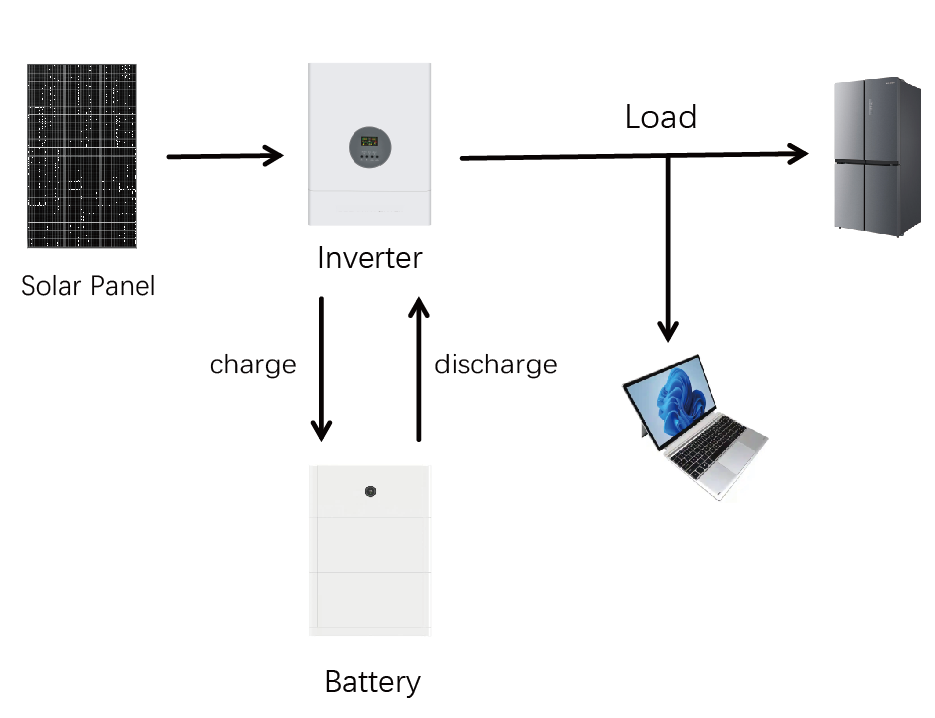

Core Components for Off-grid PV System

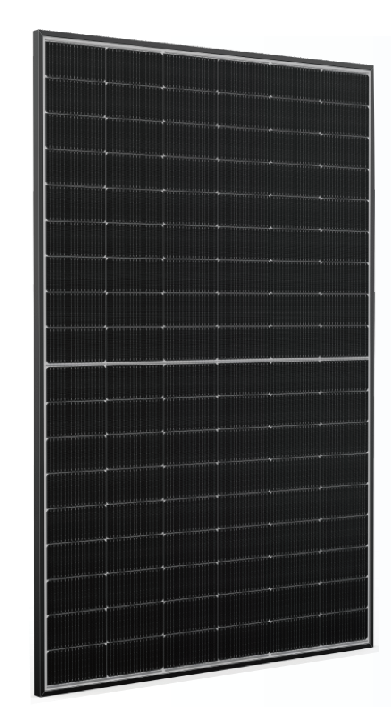

Solar Panel
• High module conversion efficiency and low operating temperature
• Higher power output in low light conditions such as cloudy, morning and sunset

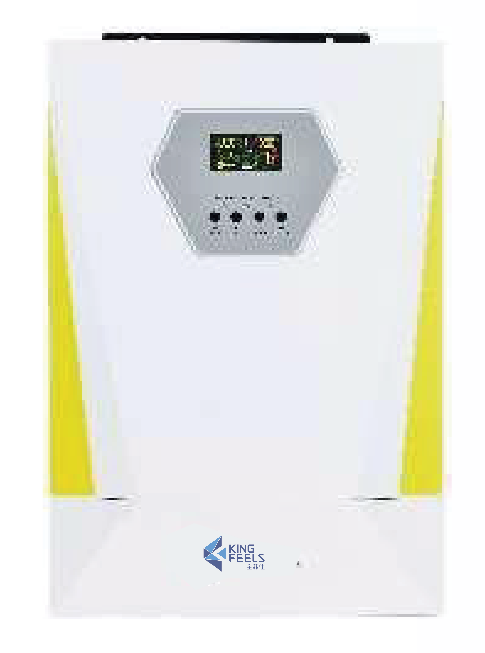

Inverter
• Waterproof and dustproof, C5 corrosion resistant
• Compatible with wide grid voltage and high harmonic grid environment

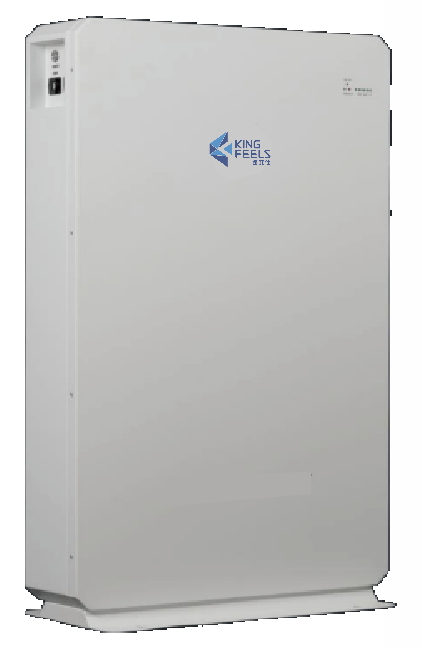

Battery
• High-capacity lithium iron phosphate battery for energy storage
• Provide wall hanging, floor and other installation methods to save space

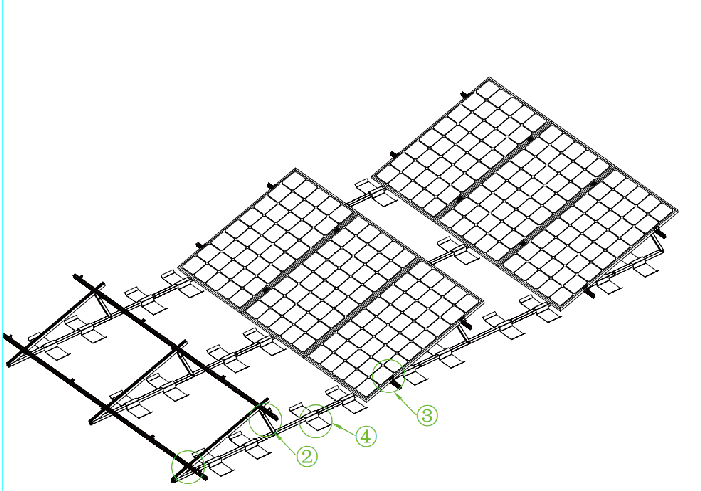

Brackets
• Faster, more stable and less stressful installation
• Lightweight aluminum alloy material, one person can be quickly installed
Product Description

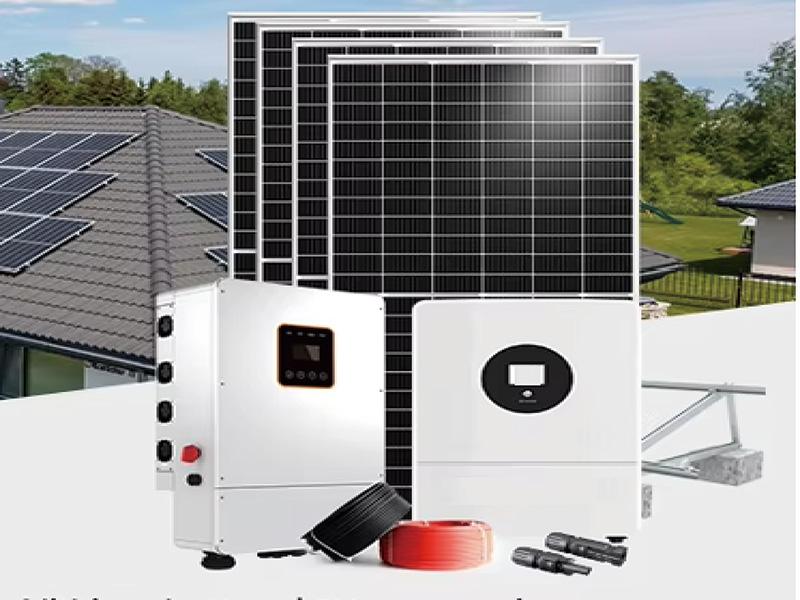

5-10KW Split Phase solar lnverter | Wall mounted lithium battery | PV accessories ;
5KW with electrical appliance, Can take 7-10 household appliances (total power within 5KW)
| PV System Capcity | Daily Output |
Average Hourly Power Consumption of the Load |
Available Hours |
| 5KW | 40KWh | 5KW / h | 8 |
| 3.3KW / h | 12 | ||
| 1.6KW / h | 24 | ||
| 10KW | 80KWh | 10KW / h | 8 |
| 6.6KW / h | 12 | ||
| 3.3KW / h | 24 | ||
| 15KW | 120KWh | 15KW / h | 8 |
| 10KW / h | 12 | ||
| 5KW / h | 24 |
| Off-grid PV System Product Configuration | ||||
| D\/ System Capacity | 5 KW | 10KW | 30KW | 50KW |
| Panel Numbers | 9 | 17 | 50 | 82 |
| Panel Power | 610W | 610W | 610W | 610W |
| Panel Size | 2382x1134x30 mm | 2382x1134x30 mm | 2382x1134x30 mm | 2382x1134x30 mm |
| otal Power | 5490W | 10370W | 30500W | 50020W |
| Bracket | 1 set | 1 set | 1 set | 1 set |
| Inverter | 5500W 1set | 11000W 1set | 11000W 3set | 11000W 5set |
| Battery | 5 kwh / 10 kwh | 10 kwh / 20 kwh | 30 kwh / 60 kwh | 50 kwh / 100 kwh |
| Suitable Roof Area | 24 m² | 46 m² | 135 m² | 221 m² |
The balcony photovoltaic system is suitable for urban residents or families with limited space. It is specially designed for small apartments and renters. It is flexible and convenient to install.
