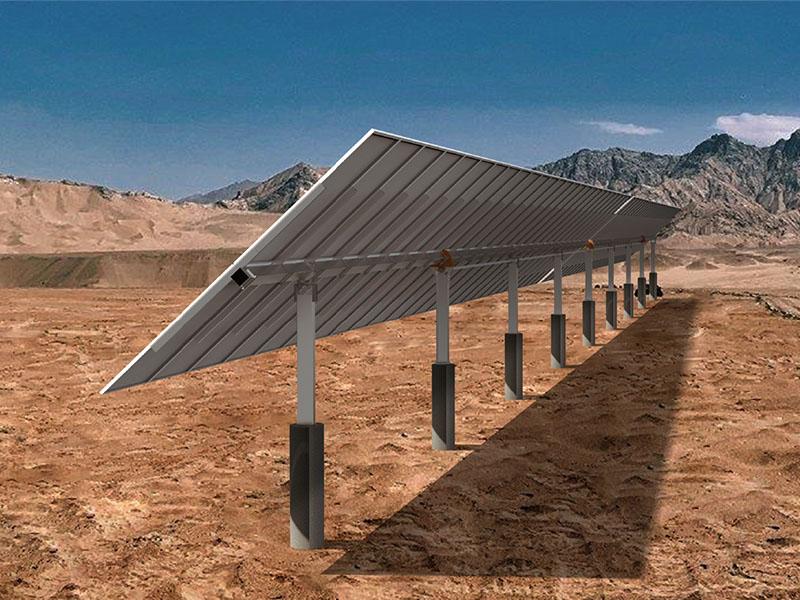

This tracking bracket is designed to generate electricity on both sides This means that not only the front can capture sunlight, but also the back can generate electricity This design makes the energy capture more comprehensive without worrying about the occlusion problem, and greatly improves the overall power generation efficiency Built-in intelligent algorithm can increase power generation by 15%-30% compared with fixed bracket This is not only a technological innovation, but also provides a reliable guarantee for energy demand.
The design of this support is ingenious in the number of pile foundations required, thus reducing the construction cost and time You can easily build this system without a large engineering team and complicated installation process Multi-point driving torque distribution is more reasonable to ensure the stability and durability of the system.

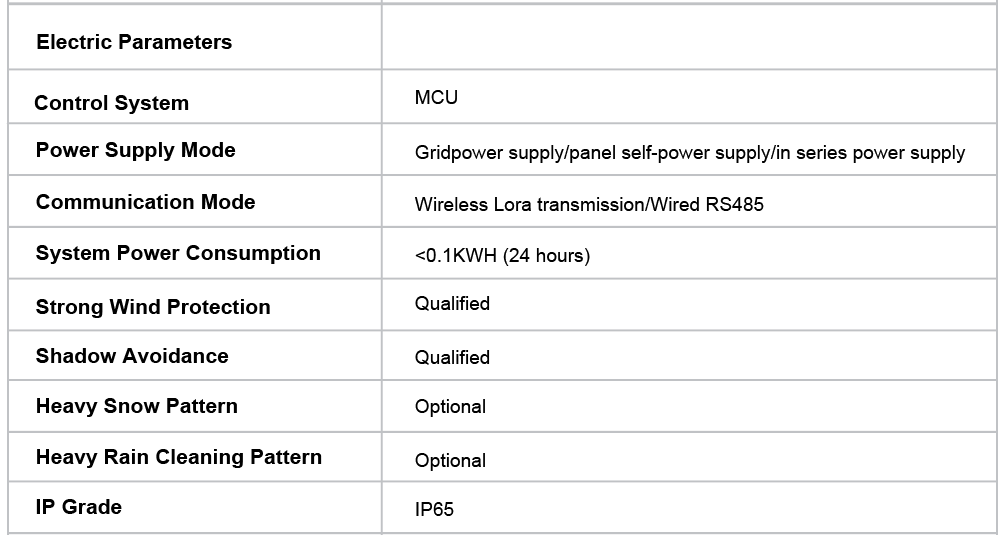

Technical Data
Install site
Open field area
Tracker Mode
Double row single axis tracking system
PV Panelinstallation
2X42或2X56 (Not more than 120 pieces)
Control Mode
Astronomical algorthm+closed-loop control (Al)
Mechanical Tracking Accuracy
±2°
Tracking Range
±45/±60°(customizable)
Drive Mode
Slew driver/Linear Actuator
Land Utilization Rate GCR
25%~50%
Structure Material
Hot Dip Galvanized Steel /Zn-Al-Mg Coating Steel
Type of Foundation
Ramming post, PHC pile, Concrete
Operating Wind speed
18m/s (customizable)
System Wind Speed
Design according to the wind speed of the project
Operating Temperature
-30℃~70℃ (customizable)
Material
Steel
Anti-corrosive
Anodized
Color
Silver
quality Guarante
10 years (2 years for electrical anddriveparts)
Key Features
- The number of pile foundation is less, the construction cost is lowerand the distribution of multi-point drive toraue is more reasonable.
- Double-sided power generation, no shelter on the back, suitable foi210mm&182mm high power panels, higher power generation efficiency
- Using Lora wireless for information transmission, transmission distanceis longer, the sianal is more stable.
- Passed TUV, SGS. CE, wind tunnel test.
- Self-learning and adaptive Al intelligent control.
- Professional team to provide technical support and after-sales service.
Components

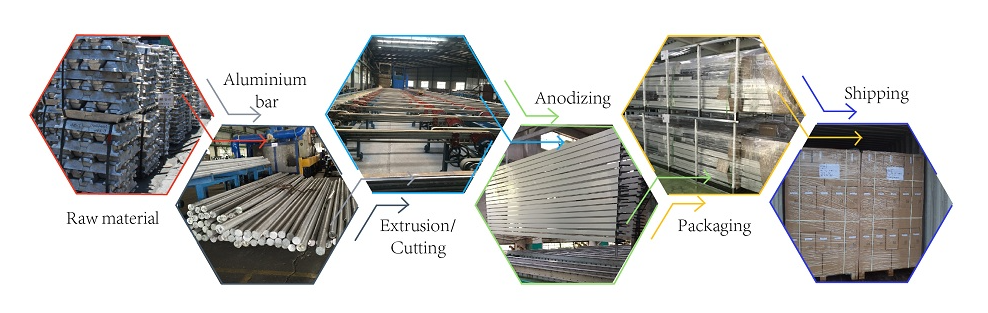

Production Process
Why choose Kingfeels ?
1. Top quality with competitive price---one of the biggest aluminum solar mounting manufacturer with integrated production in Xiamen.
2. Full anodize for all components---offering 12 year warranty and 25 year life time.
3. Excellent design ability---over 20 structure engineers, the chief engineer has 10 years' experience of structure engineering for aluminum solar mounting systems.
