Efficiency and reliability are the key in modern energy solutions SHR-HT1 NOVA STAR-Independent Single Row-1P is born for this reason, which brings unprecedented power output and stability.More reliable design and smarter algorithm track power generation increase by 15-25%
Item NO.:
SHR-HT1Payment:
T/T, L/CProduct Origin:
ChinaColor:
SilverLead Time:
7daysMaterial:
SteelColor:

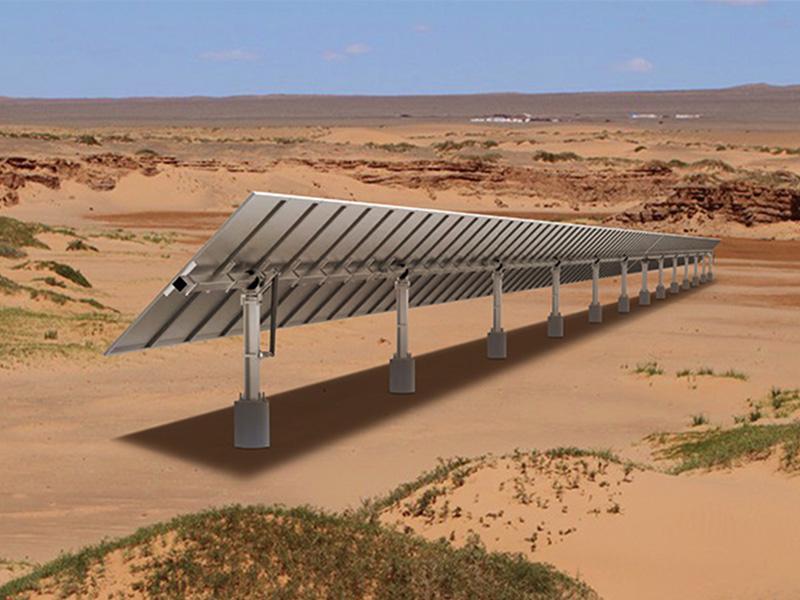

SilverSHR-HT1 NOVA STAR-Independent Single Row-1P
SHR-HT1 independent single-line tracking bracket system adopts the industry-leading design concept, which makes the main beam section larger, improves the material strength, and makes the structure more reliable. No matter how the ground slope changes, as long as the slope is not more than 20%, our tracking bracket All can adapt perfectly, and after rigorous testing, it can operate stably under various harsh conditions. The built-in intelligent algorithm can accurately capture the angle of sunlight, increasing the tracking power generation by 15-25%, which means that you can not only get more energy, but also save more costs.
Advanced LoRa wireless technology enables long-distance data transmission to ensure that every device is running in state No matter how remote your power station is located, it can be monitored in real time and managed easily.

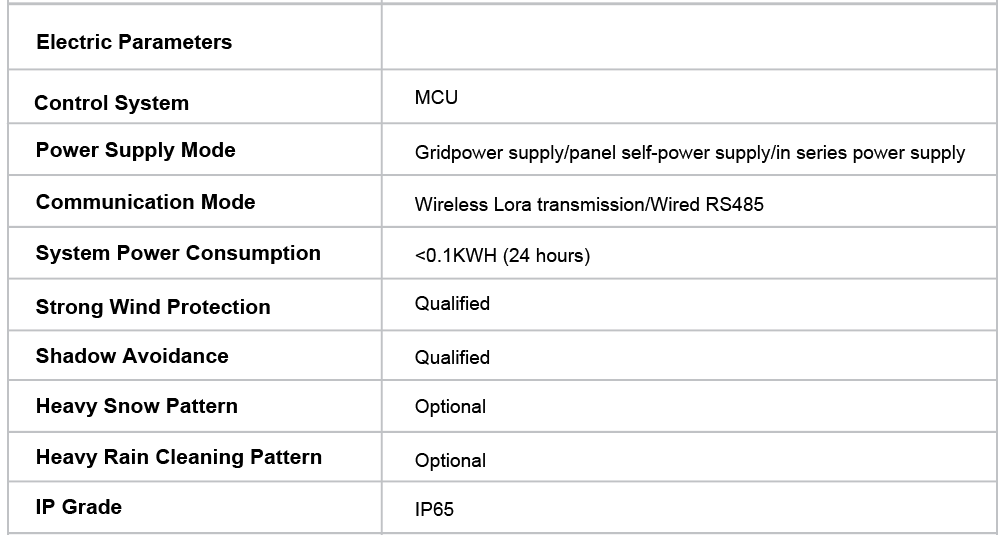

Technical Data
| Install Sit | Open field area |
| Tracker Mode | Single row single axis independent tracking system |
| PV Panel Installation | 1X84 (No more than 90 pieces) |
| Control Mode | Astronomical algorthm+closed-loop control (Al) |
| Mechanical Tracking Accuracy | ±2° |
| Tracking Range | ±45/±60°(customizable) |
| Drive Mode | Slew driver/Linear Actuator |
| Land Utilization Rate GCR | 25%~50% |
| Structure Material | Hot Dip Galvanized Steel /Zn-Al-Mg Coating Stee! |
| Type of Foundation | Ramming post, PHC pile, Concrete |
| Operating Wind Speed | 18m/s(customizable) |
| System Wind Speed | Design according to the wind speed of the project |
| Operating Temperature | -30°C~70°C(customizable) |
| Material | Steel |
| Anti-corrosive | Anodized |
| Color | Silver |
| Quality Guarante | 10 years (2 years for electrical and drive parts) |
Key Features
- Larger main beam section, higher strength material. more reliable structure.
- Adapt to not more than 20% of slope of all kinds of qround, adapt to more terrain.
- Using Lora wireless for information transmission, transmission distanceislonger, the sianal is more stable.
- Passed TUV, SGS. CE, wind tunnel test.
- Self-learning and adaptive Al intelligent control.
- Professional team to provide technical support and after-sales service.
Components

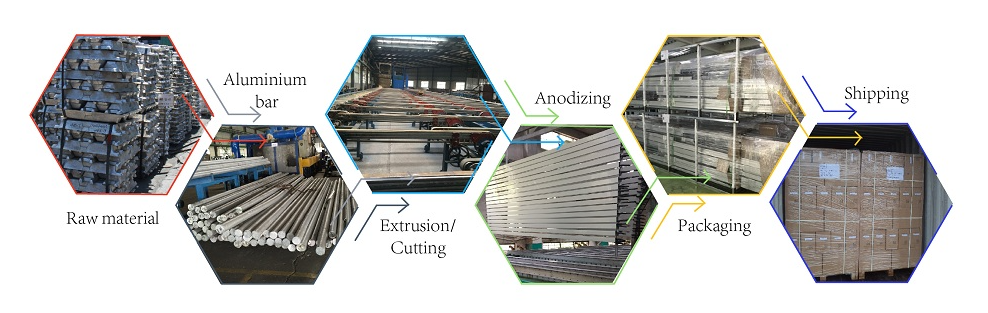

Production Process
Why choose Kingfeels ?
1. Top quality with competitive price---one of the biggest aluminum solar mounting manufacturer with integrated production in Xiamen.
2. Full anodize for all components---offering 12 year warranty and 25 year life time.
3. Excellent design ability---over 20 structure engineers, the chief engineer has 10 years' experience of structure engineering for aluminum solar mounting systems.
